Variably adjustable piston pump, 75cm³, side connection
Part numberHT1022SD
BrandVetus
CategoryHydraulic Hoses & Fittings
$8568.88
Special order — we'll bring this in to our Mornington (VIC) warehouse
Usually dispatched 19–26 August. We'll confirm your ETA once you order, and you can cancel for a full refund if the timing doesn't work.
Estimate freight to your postcode
Not sure this fits? We're happy to help.
Ask us about this part →

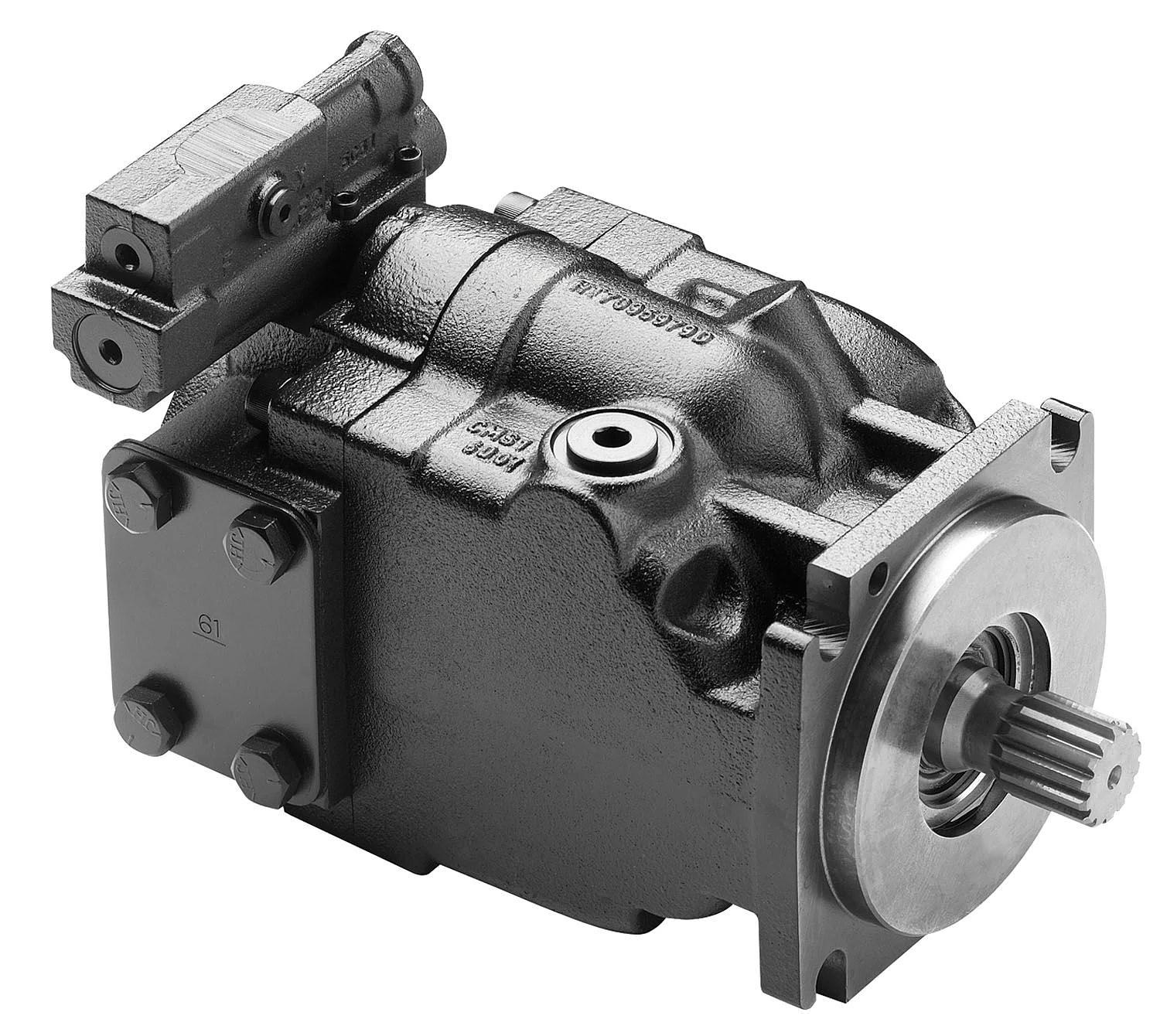

Vetus 75 cc variable displacement piston pump with anticlockwise rotation. SAE-C flange and 14-spline shaft with side connections for suction and pressure, running to 2880 rpm, and it fits Twindisc gearboxes.
Brand
Vetus
Part number
HT1022SD
Category
Hydraulic Hoses & Fittings
Capacity (cc)
75 cc (4.57 cu.inch).
Sense of rotation
LH - anticlockwise
Connections
SAE-C flange, 14 spline shaft.Side connection for suction and pressure.Fits Twindisc gearboxes.
Max. speed (RPM)
2880
Country
Sourced for AU retail
GST
Inclusive in displayed price
30-day no-fuss returns. If you opened the box and the part doesn't fit, send it back unused within 30 days for a full refund. We'll cover return freight on our error; you'll cover it if the part was correct as ordered.
12-month warranty. Manufacturing defects covered for 12 months from purchase date. Wear-and-tear (impellers degrade with use — that's their job) is not covered, but reach out if something fails early and we'll work it out with the manufacturer.
